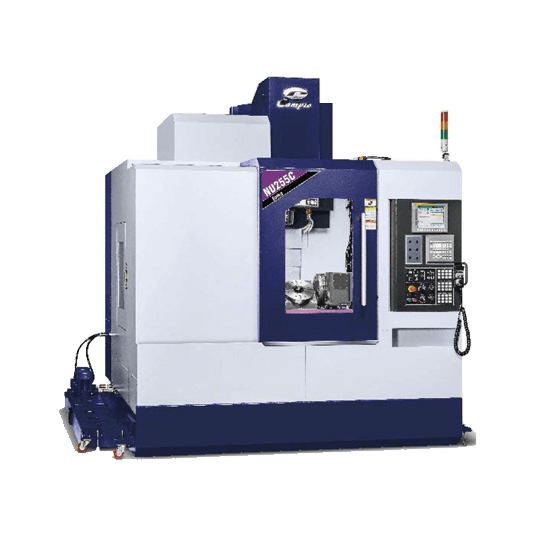

5 Axis Machining Center

NU 255C

X:400 / Y:520 / Z:450 (mm)

Application :

Aerospace

The new NU Series 5 Axis Machining Center gives your workshop the versatility to machine smaller less expensive components without the expense or large footprint of a swivel head machine.

Table dimension: Ø255 mm (Ø6.6")
A axis swiveling range: +30°~ -120°
Max. Workpiece Dimesion: Ø320x 375 mm
Max. loading weight (V / H): 100 / 70kgf

CATALOG INQUIRE

Video

Feature

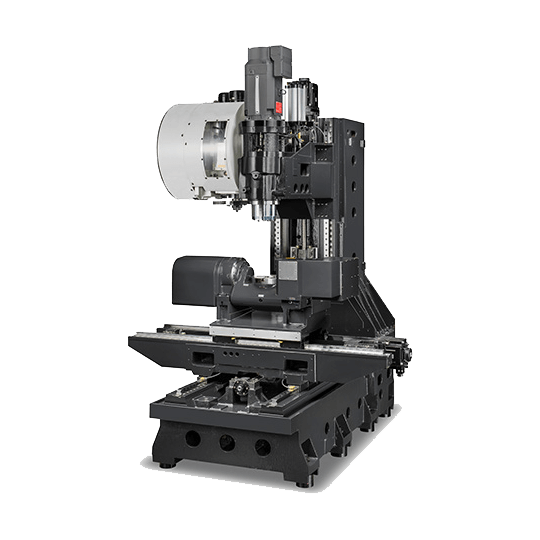

Double arm supported A/C axes

Using the integrated trunnion table design is the easiest upgrade path for 3 Axis machine workshops as the approach to part tooling is very similar and reduces the training time required for your operators.

The X, Y, and Z axis on this machine all feature heavy duty roller type linear guideways to maintain precision under rapid movement and heavy loading.

Machine Specification

* Machine specifications and design are subject to change without prior notice due to on-going innovation.
Item	Unit	NU 255C
Travel
X axis travel	mm (in)	400 (15.7")
Y axis travel	mm (in)	520 (20.4")
Z axis travel	mm (in)	450 (17.7")
A axis swiveling range	deg.	+30°~-120°
C axis rotary range	deg.	360°
Spindle nose to table surface	mm (in)	40~490 (1.5" ~ 19.2")
Table
Table dimension	mm (in)	Ø255 (Ø10")
Max. loading weight (V / H)	kg (lb)	100 / 70 (220 / 154)
Spindle
Spindle motor	kW	11 / 15 (20HP)
Spindle speed	rpm	10,000
Tool shank	type	BBT-40
Automatic Tool Changer
No. of tools (OPT)	number	24 (30)
Max. tool weight	kg (lb)	7 (15)
Max. tool length	mm (in)	250 (9.8")
Max. tool diameter	mm (in)	Ø80 (Ø3.1")
Max. tool diameter (Adjacent empty)	mm (in)	Ø150 (Ø5.9")
Feedrate
Rapid feedrate (X / Y / Z)	m (in)/min.	30 / 30 / 30 (1,181.1 / 1,181.1 / 1,181.1)
Rapid feedrate (A / C)	rpm	22.2 / 33.3
Other
Floor plan (W × D)	mm (in)	2,950 × 2,260 (116" x 88")
Machine weight	kg (lb)	5,600 (12,345)
Max. machine hight	mm (in)	2,900 (114")
Power capacity	KVA	30
