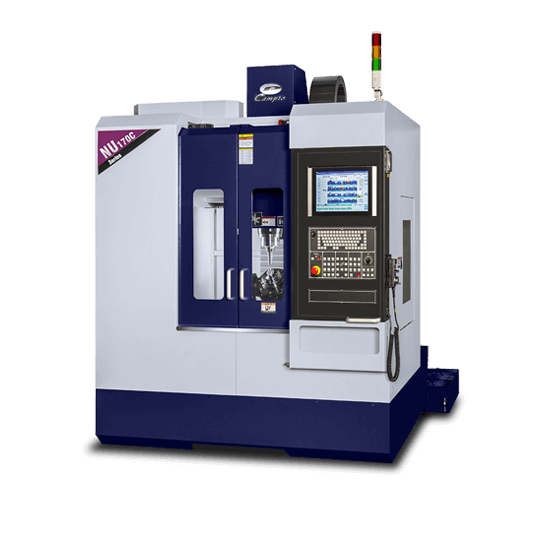

5 Axis Machining Center
NU 170C
X:400 / Y:430 / Z:480 (mm)
The new NU Series 5 Axis Machining Center gives your workshop the versatility to machine smaller less expensive components without the expense or large footprint of a swivel head machine
- Table dimension: Ø170 mm (Ø6.6")
- A axis swiveling range: ±100°
- Max. Workpiece Dimesion: Ø220x 350 mm
- Max. loading weight (V / H): 50 / 30kgf
Feature

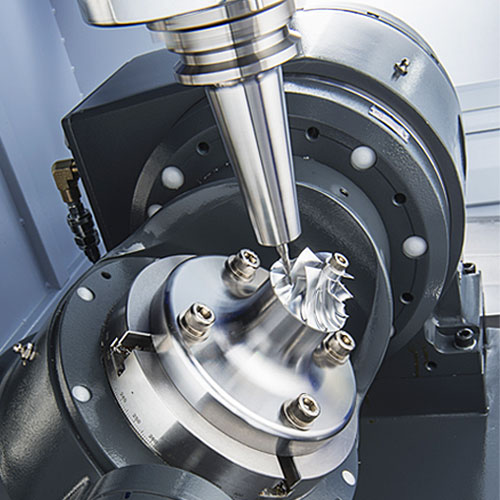

Double arm supported A/C axes
Using the integrated trunnion table design is the easiest upgrade path for 3 Axis machine workshops as the approach to part tooling is very similar and reduces the training time required for your operators.

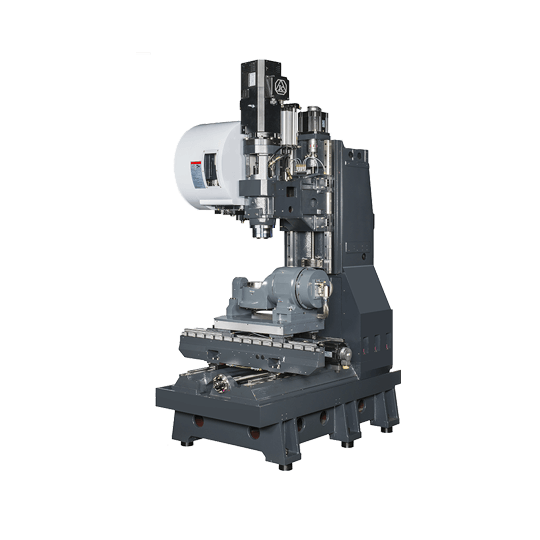

The X, Y, and Z axis on this machine all feature heavy duty roller type linear guideways to maintain precision under rapid movement and heavy loading.
Machine Specification
| Item | Unit | NU 170C |
|---|---|---|
| Travel | ||
| X axis travel | mm (in) | 400 (15.7") |
| Y axis travel | mm (in) | 430 (16.9") |
| Z axis travel | mm (in) | 480 (18.8") |
| A axis swiveling range | deg. | ±100° |
| C axis rotary range | deg. | 360° |
| Spindle nose to table surface | mm (in) | 25~505 (0.9" ~ 19.8") |
| Table | ||
| Table dimension | mm (in) | Ø170 (Ø6.6") |
| Max. loading weight (V / H) | kg (lb) | 50 / 30 (110 / 66) |
| Spindle | ||
| Spindle motor | kw | 7.5 / 11 (15HP) |
| Spindle speed | rpm | 10,000 |
| Tool shank | type | BBT-40 |
| Automatic Tool Changer | ||
| No. of tools | pcs. | 20 |
| Max. tool weight | kg (lb) | 7 (15) |
| Max. tool length | mm (in) | 250 (9.8") |
| Max. tool diameter | mm (in) | Ø80 (Ø3.1") |
| Max. tool diameter (Adjacent empty) | mm (in) | Ø150 (Ø5.9") |
| Feedrate | ||
| Rapid feedrate (X / Y / Z) | m (in)/min. | 30 / 30 / 30 (1,181.1 / 1,181.1 / 1,181.1) |
| Rapid feedrate (A / C) | rpm | 200 / 300 |
| Other | ||
| Floor plan (W × D) | mm (in) | 2,240 × 2,900 (88" x 114") |
| Machine weight | kg (lb) | 4,000 (8,818) |
| Max. machine hight | mm (in) | 2,850 (112") |
| Power capacity | KVA | 20 |
