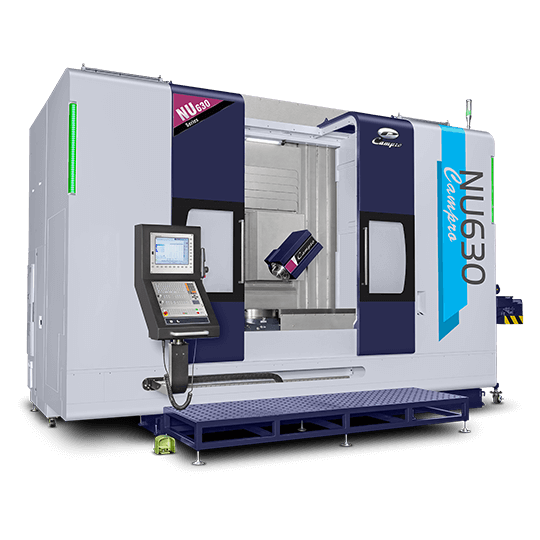

5 Axis Machining Center
NU 630 (Traveling Column)
X:1320 / Y:610 / Z:762 (mm)
NU 630 delivers diverse task machining. The shortest force flow structure configuration as the main design concept with high rigidity swivel head as a controlled B-axis, the ±110° swiveling range changes tool nose point in seconds to provide multiple machining processes and complex parts machining performance. Working table embedded rotary table design supports both 3-axis and 5-axis jobs.
- Table dimension: Ø630 mm
- B axis swiveling range: ±110°
- C axis rotary range: 360°
Feature
Full Moving-Column 5-Axis Structure:
The workpiece remains stationary during axis movement, helping reduce the influence of workpiece weight on dynamic accuracy.
Fixed Table with 1,200 kg Load Capacity:
Provides stable support for large and heavier workpieces while helping maintain machining accuracy and quality.
B-Axis Swivel Head with ±110° Range:
Offers greater tool inclination angles and machining freedom for multi-face machining and complex contour applications.
Shared Platform for 3-Axis and 5-Axis Machining:
The fixed table integrates a C-axis rotary table, allowing flexible machining configurations for different workpieces and processes.
Three-Guideway X-Axis Design:
Combined with heavy-duty roller linear guideways to enhance motion stability, rigidity, and load capacity.
Machine Specification
| Item | Unit | NU 630 |
|---|---|---|
| Travel | ||
| X axis travel | mm (in) | 1,320 (51.9") |
| Y axis travel | mm (in) | 610 (24") |
| Z axis travel | mm (in) | 705 (27.7") |
| B axis swiveling range | deg. | ±110° |
| C axis rotary range | deg. | 360° |
| Spindle nose to table surface (in) | mm (in) | 45~770 (1.7~30.3") |
| Table | ||
| Table dimension | mm (in) | Ø630 x 1,525 (Ø24.8" x 60") |
| C-axis rotary table dimension | mm (in) | 630 (24.8") |
| Max. loading weight | kg (lb) | 1,200 (2,645) |
| Max. workpiece height | mm (in) | 970 (38.1") |
| Spindle | ||
| Spindle motor | kW | 36.5 / 41 (55HP) |
| Spindle speed | rpm | 12,000 |
| Tool shank | type | BBT-40 |
| Automatic Tool Changer | ||
| No. of tools (OPT) | kW | 32 (40) |
| Max. tool weight | kg (lb) | 8 (17) |
| Max. tool length | mm (in) | 300 (11.8") |
| Max. tool diameter | mm (in) | Ø75 (Ø2.9") |
| Max. tool diameter (Adjacent empty) | mm (in) | Ø130 (Ø5.1") |
| Feedrate | ||
| Rapid feedrate (X / Y / Z) | m (in)/min. | 36 / 36 / 30 (1,417.3 / 1,417.3 / 1,181.1) |
| Rapid feedrate (B / C) | rpm | 25 / 25 |
| Other | ||
| Floor plan (W × D) | mm (in) | 5,860 × 4,200 (230" x 165") |
| Machine weight | kg (lb) | 13,000 (28,660) |
| Max. machine hight | mm (in) | 3,800 (149") |
| Power capacity | KVA | 60 |
