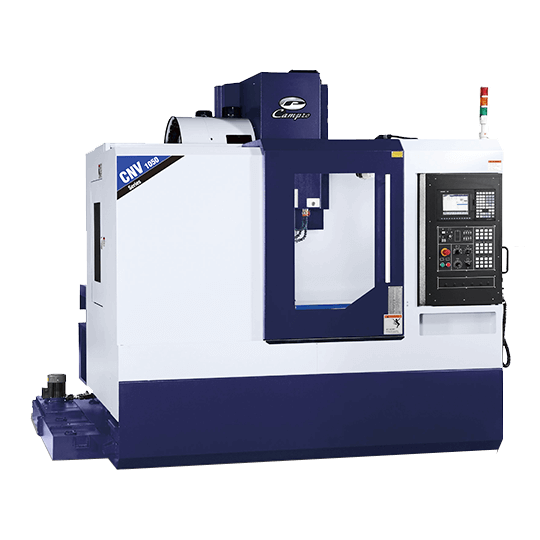

Vertical Machining Center cnv-1050 Vertical Machining Center CNV 850-1050 structure

Vertical Machining Center


X:1050 / Y:540 / Z:520 (mm)

The cast iron construction was designed using "Finite Element Analysis (FEA) and Advanced 3D Software and is extremely rigid and provides extremely accurate machining capabilities as well as high metal removal rates.

The CNV series was ergonomically designed from the movable control panel to chip disposal and many other design features to reduce operator fatigue and increase working efficiency.


Innovative Design Concepts

The high cast-iron construction meets maximum rigidity and accuracy be designed via Finite Element Analysis(FEA) and advanced 3D software.

All axes are equipped precision linear guide ways, direct drive servo motor with coupling and without counter-balance on Z-axis ensuring machining accuracy.

User-friendly operation is designed as easy to chip disposal and ergonomically control panel enable to swivel 0~75 degrees to reduce operator fatigue and increase working efficiency.

CNV series-machining

Machine Specification

Item Unit CNV-1050
X axis travel mm (in) 1,050 (41.3")
Y axis travel mm (in) 540 (21.2")
Z axis travel mm (in) 520 (20.4")
Distance from spindle nose to table surface mm (in) 110~630 (43" ~ 24.8")
Distance from spindle center to column mm (in) 630 (24.8")
Table dimension mm (in) 1,150 × 520 (45.2" x 20.4")
Max. loading weight kg (lb) 600 (1,322)
T-slots (W x No. x P) mm (in) 18 x 5 x 100 (0.7" x 5 x 3.9")
Spindle speed (OPT) rpm 8,000 (10,000 / 12,000 / 15,000)
Spindle motor kW (HP) 7.5 / 11 (15)
Spindle taper type 7/24 taper No.40
Automatic Tool Changer
ATC type (OPT) type Arm type (Carrousel)
Tool shank type BT-40
Pull stud type P-40T (45°)
Tool storage capacity (OPT) pcs. 24 (20)
Max. tool diameter mm (in) Ø80 (Ø3.1")
Max. tool diameter (Adjacent empty) mm (in) Ø150 (Ø5.9")
Max. tool length mm (in) 250 (9.8")
Max. tool weight kg (lb) 7 (15)
Tool change time (Tool to Tool) sec. 2.5
Tool change time (Chip to Chip) sec. 7
Rapid feedrate (X / Y / Z) m (in) /min 30 / 30 / 30
(1,181.1 / 1,181.1 / 1,181.1)
Cutting feedrate mm (in) /min 10,000 (393.7)
Floor plan (W × D) mm (in) 3,330 × 2,260 (131" x 88")
Machine weight kg (lb) 5,700 (12,566)
Max. machine hight mm (in) 2,680 (105")
Air source kg/cm(PSI) 6~8 (85~113)
Power capacity KVA 15

* Machine specifications and design are subject to change without prior notice due to on-going innovation.
