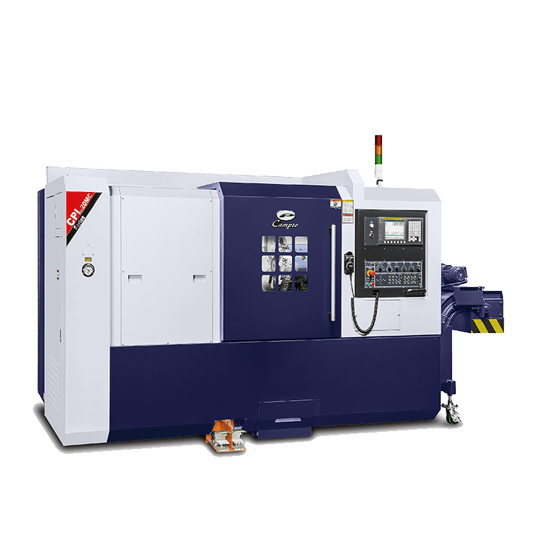

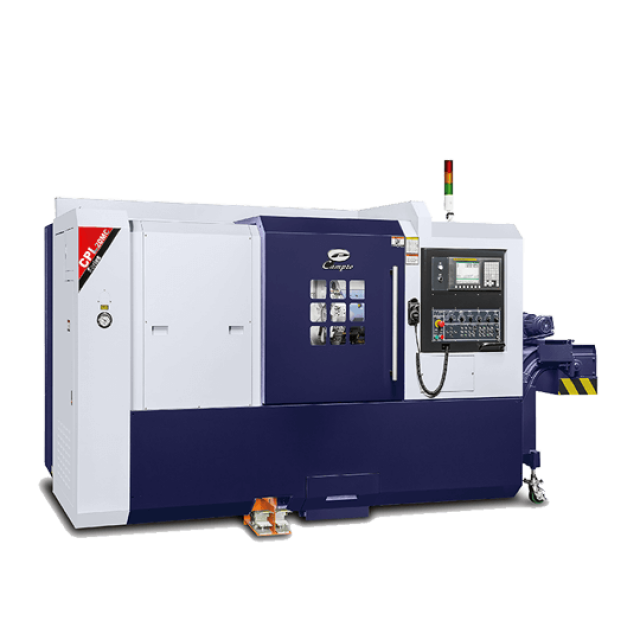

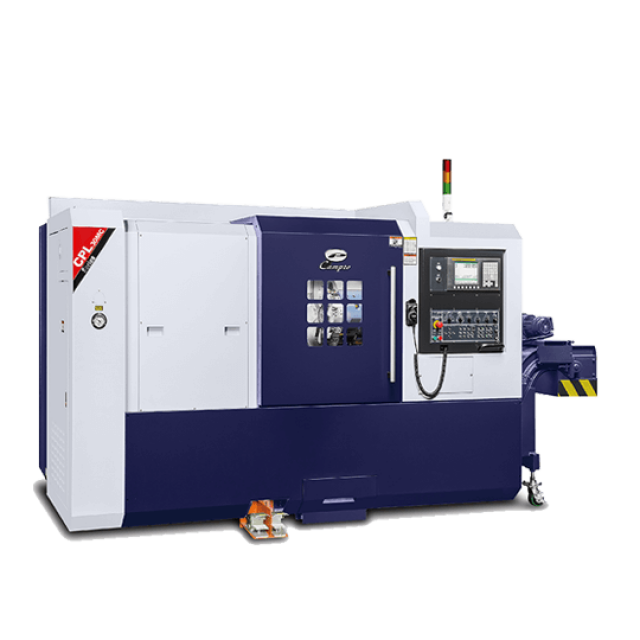

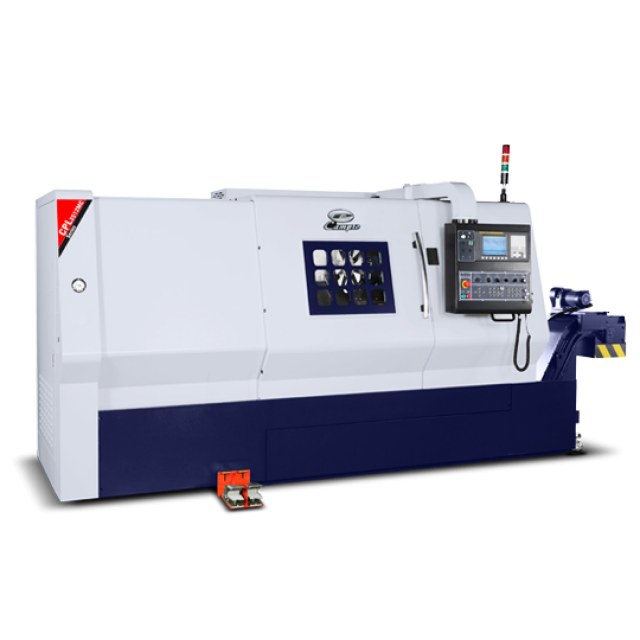

CNC Turning and Milling Center
CPL-20MC
X:200+5 / Z:475 (mm)
Campro CPL-MC series can accommodate workpieces up to 590 mm in diameter and 3,000 mm in length.
- With C-axis to achieve versatility and productivity.
- Live turret replaces as standard, each tool can become a rotating tool.
Feature
The one-piece constructed 45° box type structure is manufactured from high quality cast iron to assure maximum rigidity and stability for long time machining.
Powerful AC spindle motor drive and finned headstock construction for excellent heat dissipation. High torque output combined with constant circumferential speed ensures optimal cutting performance, extra fine and accurate machined surface which greatly increase tool life.
CPL-10MC ~ 3512MC employ high rigidity and high precision linear guideways which provide unmatched performance than that of competitors and feature high loading capacity, low noise and long service life.
The VDI Turret is adopted on CPL-10MC ~ 3512MC which offers a quick change tooling solution and short cycle time. The quick-change clamping method can performs within seconds in high degree of stability due to high locking forces.
Machine Specification
| Item | Unit | CPL-20MC |
|---|---|---|
| Capacity | ||
| Max. swing over bed | mm (in) | 540 (21.2") |
| Max. swing over carriage | mm (in) | 300 (11.8") |
| Max. turning length | mm (in) | 470 (18.5") |
| Max. milling length | mm (in) | 432 (17") |
| Max. turning diameter | mm (in) | 260 (10.2") |
| X-Axis | ||
| Travel | mm (in) | 200 + 5 (7.8" + 0.19") |
| Rapid travel | m (in)/min. | 24 (944.8) |
| Z-Axis | ||
| Travel | mm (in) | 475 (18.7") |
| Rapid travel | m (in)/min. | 24 (944.8) |
| Spindle | ||
| Spindle nose | type | A2-6 |
| Hydraulic chuck (OPT) | inch | 8" (10") |
| Hole through draw tube | mm (in) | Ø52 (Ø2") |
| Spindle bearing diameter | mm (in) | Ø100 (Ø3.9") |
| Spindle speed | rpm | 4,200 |
| Spindle motor | kW (HP) | 11 / 15 (20HP) |
| Indexing of C-axis | degree | 0.001° |
| Turret | ||
| Turret type | type | 12-Servo |
| Turret system | mm | VDI-40 |
| Tool change time | sec. | 0.2 |
| Sevo motor | kW | 3.7 / 5.5 |
| Max. tool speed | rpm | 4,000 |
| Tailstock | ||
| Quill diameter | mm (in) | Ø80 (Ø3.1") |
| Quill travel | mm (in) | 120 (4.7") |
| Quill taper | type | MT-#4 |
| Other | ||
| Floor plan (with chip conveyor) | mm (in) | 3,455 x 1,785 (136" x 70") |
| Machine weight | kg (lb) | 4,500 (9,920) |
| Coolant tank capacity | L (gal) | 110 (29) |
| Power capacity | KVA | 25 |
