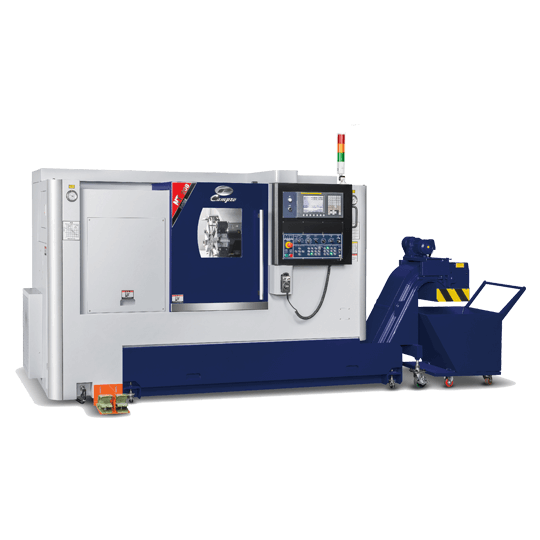

Precision Lathe
NT-208 (Box)
X:210+20 / Z:570 (mm)
Campro presents the new NT series CNC lathe. NT-208 is based on high quality cast iron for perfect stiffness and vibration characteristics. 30° cast iron inclined bed ensure quick chip evacuation.
Wide range of options allows customer to equip one-piece linear / box guideways, sub spindle or Y-axis in the same floor space for any production demand. The new CPMS (Campro Production Management System) represent the first step in the smart manufacturing.
Feature
NT-series are based on high quality cast iron for perfect stiffness and vibration characteristics.
30° cast iron inclined bed design ensures quicker chip evacuation and lower vibration.
Modular design concept provides subsequent modify and extend ability.
Wide range of options allows to equip linear / box guideways, living turret with C-axis, Y-axis, or sub-spindle for various application demands.
Optimal reinforced rib at the bed performs super heavy-duty turning and maintain long-term accuracy.
Compete with slant bed CNC lathe which is designed flat bed with high-flying wedge, NT-series are one-piece slant bed deisgned that offer more rigidity and thermal stability, and also deliver much heavier cutting with a smaller footprint.
Machine Specification
| Item | Unit | NT-208 (Box way) |
|---|---|---|
| Capacity | ||
| Max. swing over bed | mm (in) | Ø580 (22.8") |
| Max. swing over carriage | mm (in) | Ø390 (15.3") |
| Max. turning length | mm (in) | 550 (21.6") |
| Max. turning diameter | mm (in) | Ø420 (16.5") |
| Travel | ||
| X-axis | mm (in) | 210 + 20 (8.2" + 0.78") |
| Z-axis | mm (in) | 570 (22.4") |
| Rapid traverse (X / Z) | m (in)/min | 20 / 24 (787.4 / 944.8) |
| Spindle | ||
| Spindle nose | type | A2-6 |
| Hydraulic chuck | inch | 8" |
| Hole through draw tube | mm (in) | Ø52 (2.04") |
| Spindle motor | kW (HP) | 11 / 15 (20) |
| Spindle speed | rpm | 4,200 |
| Turret | ||
| Turret type | type | Hydraulic |
| Nos. of turret | Nos. | 10-Station |
| Tool shank O.D. / I.D. | mm | □25 / Ø40 |
| Tailstock | ||
| Quill diameter | mm (in) | Ø80 (Ø3.1") |
| Tailstock travel | mm (in) | 460 (18.1") |
| Quill travel | mm (in) | 120 (4.7") |
| Quill taper | type | MT-#4 |
| Other | ||
| Floor plan (W x D x H) | mm (in) | 3,839 × 1,950 x 1,785 (151" x 76" x 70") |
| Machine weight | kg (lb) | 4,200 (9,259) |
| Power capacity | KVA | 20 |
