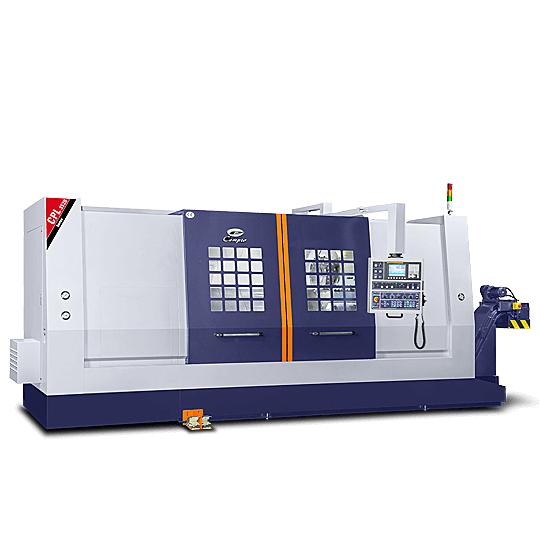

Precision CNC Lathe cpl 3520 Precision CNC Lathe cpl 3518-3520 structure
Box Way 45° Slant-bed

Precision Lathe

CPL-3520

X:355+30 / Z:2150 (mm)

Fully encolsed splash guard with aesthetic modular design.

To achieve operational safety and environment protection, while upgrading working efficiency.

All heat source positions are provided with ventilation and heat exhaust holes for efficient heat dissipation to ensure the machine accuracy.

Video
cpl-3520

Feature

To achieve operational safety and environment protection, while upgrading working efficiency.All heat source positions are provided with ventilation and heat exhaust holes for efficient heat dissipation to ensure the machine accuracy.

The one-piece constructed 45° box type structure is manufactured from high quality cast iron to assure maximum rigidity and stability for long time machining.

Powerful AC spindle motor drive and finned head stock construction for excellent heat dissipation.

The precision grinding box way transmission with Turcite-B precisely scraped to increase fluent traverse thereby assuring accurate stability.

Precision Lathe-turnning

Machine Specification

Item Unit CPL-3520
Capacity
Max. swing over bed mm (in) Ø900 (Ø35.4")
Max. swing over carriage mm (in) Ø700 (Ø27.5")
Distance between centers mm (in) 2,050 (80.7")
OPT: 1,400 (55.1") / 3,000 (118.1")
Max. turning length mm (in) 2,050 (80.7")
OPT: 1,400 (55.1") / 3,000 (118.1")
Standard turning diameter mm (in) Ø620 (24.4")
Max. turning diameter mm (in) Ø700 (27.5")
X-Axis
Travel mm (in) 355 + 30 (13.9" + 1.1")
Rapid travel m (in) /min. 20 (787.4)
Z-Axis
Travel mm (in) 2,150 (84.6")
OPT: 1,500 (59") / 3,100 (122")
Rapid travel m (in) /min. 15 (590.5)
OPT: 20 (787.4) / 15 (590.5)
Spindle
Spindle nose type A2-15
Hydraulic chuck (OPT) inch 20" (24")
Hole through draw tube mm (in) Ø165 (Ø6.4")
Spindle bearing diameter mm (in) 240 (9.4")
Spindle motor kW (HP) 22 / 26 (35) Gear Type
Spindle speed rpm 1,000
Turret
Turret type type 8-Stations
O.D. / I.D. mm □32 / Ø60
Tool change time sec. 0.3
Tailstock
Quill diameter mm (in) Ø150 (Ø5.9")
Quill travel mm (in) 150 (5.9")
Quill taper type MT-#6
Other
Floor plan (with chip conveyor) mm (in) 6,433 x 2,542 (253" x 100")
OPT: 5,783 x 2,542 (227" x 100") /  7,433 x 2,542 (292" x 100")
Machine weight kg (lb) 13,100 (28,880)
OPT: 11,600 (25,573) / 16,100 (35,494)
Coolant tank capacity L (gal) 450 (118)
Power capacity KVA 40

* Machine specifications and design are subject to change without prior notice due to on-going innovation.
