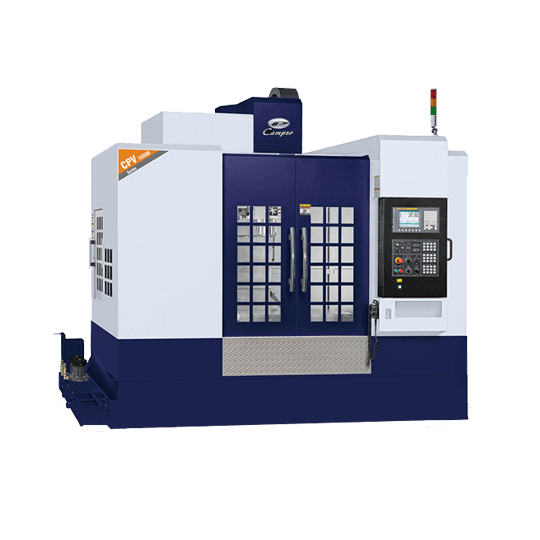

BT40 Box Way

Vertical Machining Center

CPV-1050B

X:1050 / Y:530 / Z:780 (mm)

Application :

Die & Mold Automotives

Designed to be a highly versatile and efficient machining center. Boxway design provides superior rigidity and accuracy. Constructed with high quality heat-treated cast iron to relieve stress.

CATALOG INQUIRE

Feature

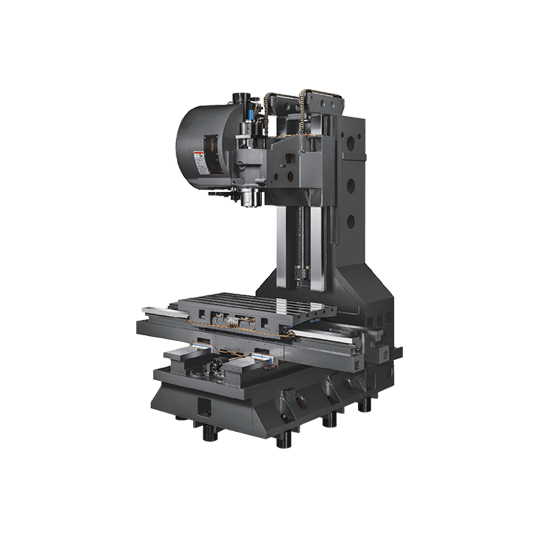

Innovative Design Concepts

Constructed with high quality cast iron and heat treated to relieve stress thereby assuring maximum rigidity and accuracy.

Box ways on 3 axes greatly upgrade stability and dampening capability.

Automatic lubrication unit with intelligent pressure failure detection function provides reliable supply for saving cost and for environmental protection.

Oil-coolant separation design which meets the environment protection requirements allows centralized collection for slide ways oil.

Product Gallery

Machining center with high versatility and stability

Table base is precisely calculated guide way span helps to disperse vibration during operation

Standard belt type spindle employs rigid class P4 angular contact ball bearings

All three axes feature a direct drive design with a backlash free coupling

Precision scraping on both bonded Turcite-B and cast iron surfaces helps to reduce wear, maintaining accuracy and machine longevity

Pretensioned class C3 precision ball screws on 3 axes help to eliminate backlash

All machines come standard with a spindle oil cooler. The head is designed with a superior circulation system to maintain a constant temperature during operation

Optional Tilting Rotary Table

Machine Specification

* Machine specifications and design are subject to change without prior notice due to on-going innovation.
Item	Unit	CPV-1050B
Travel
X axis travel	mm (in)	1,050 (41.3")
Y axis travel	mm (in)	530 (20.8")
Z axis travel	mm (in)	780 (30.7")
Distance from spindle nose to table surface	mm (in)	100~880 (3.9" ~ 34.6")
Distance from spindle center to column	mm (in)	590 (23.2")
Table
Table dimension	mm (in)	1,050 × 530 (41.3" x 20.8")
Max. loading weight	kg (lb)	1,000 (2,204)
T-slots (W x No. x P)	mm (in)	18 x 5 x 100 (0.7" x 5 x 3.9")
Spindle
Spindle speed	rpm	10,000
Spindle motor	kW (HP)	11 / 15 (20HP)
Spindle taper	type	7/24 taper No.40
Automatic Tool Changer
ATC type	type	Arm type
Tool shank	type	BT-40
Pull stud	type	P-40T (45°)
Tool storage capacity	pcs.	24
Max. tool diameter	mm (in)	Ø80 (Ø3.1")
Max. tool diameter (Adjacent empty)	mm (in)	Ø150 (Ø5.9")
Max. tool length	mm (in)	250 (9.8")
Max. tool weight	kg (lb)	7 (15)
Tool change time (Tool to Tool)	sec.	2.5
Tool change time (Chip to Chip)	sec.	6
Feedrate
Rapid traverse (X / Y / Z)	m (in)/min.	30 / 30 / 30 (1,181.1 / 1,181.1 / 1,181.1)
Cutting feedrate	mm (in)/min.	10,000 (393.7)
Other
Floor plan (W × D)	mm (in)	3,650 × 2,690 (143" x 105")
Machine weight	kg (lb)	6,700 (14,770)
Max. machine height	mm (in)	2,900 (114")
Air source	kg/cm²(PSI)	6~8 (85~113)
Power supply	KVA	20
