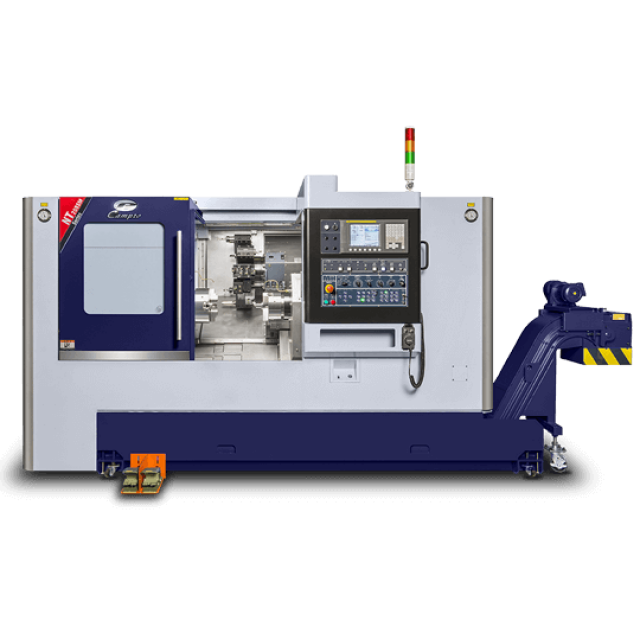

CNC Turning and Milling Center nt-208sm
30° Slant-bed

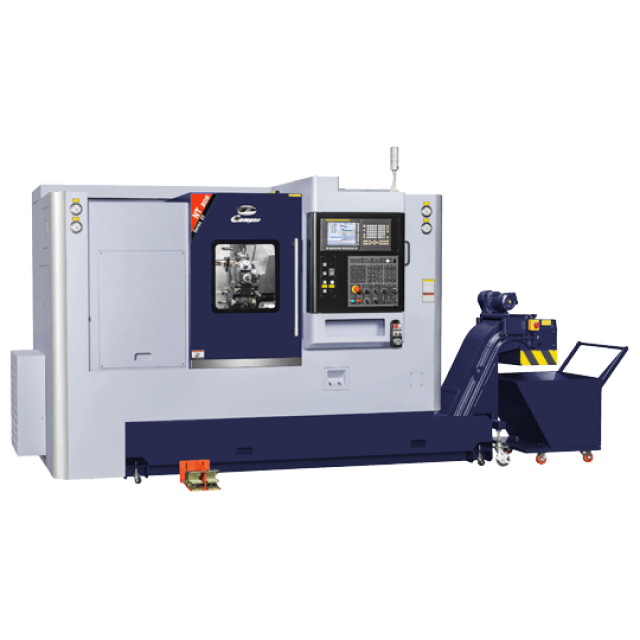

CNC Turning and Milling Center

NT-2510Y

X:210+20 / Y:100(±50) / Z:570 (mm)

Feature

NT-series are based on high quality cast iron for perfect stiffness and vibration characteristics.

30° cast iron inclined bed design ensures quicker chip evacuation and lower vibration.

Modular design concept provides subsequent modify and extend ability.

Wide range of options allows to equip linear / box guideways, living turret with C-axis, Y-axis, or sub-spindle for various application demands.

Optimal reinforced rib at the bed performs super heavy-duty turning and maintain long-term accuracy.

Compete with slant bed CNC lathe which is designed flat bed with high-flying wedge, NT-series are one-piece slant bed deisgned that offer more rigidity and thermal stability, and also deliver much heavier cutting with a smaller footprint.

Precision Lathe-turnning

Machine Specification

Item Unit NT-2510Y
Capacity
Max. swing over bed mm (in) Ø780 (Ø30.7")
Max. swing over carriage mm (in) Ø460 (Ø18.1")
Max. turning length mm (in) 520 (20.4")
Max. turning diameter mm (in) Ø400 (Ø15.7")
Travel
X-axis mm (in) 210 + 20 (8.2" + 0.7")
Y-axis mm (in) 100 (±50) 3.9" (±1.9")
Z-axis mm (in) 630 (24.8")
Spindle
Spindle nose type A2-6
Hydraulic chuck inch 8"
Hole through draw tube mm (in) Ø52 (Ø2.04")
Spindle motor kW (HP) 11 / 15 (20)
Spindle speed rpm 4,200
Indexing of C-axis degree 0.001°
Turret
Turret type type Servo
Nos. of turret Nos. 12-Station
Tool shank O.D. / I.D. mm □25 / Ø40 (BMT-55)
Servo motor kW 2.2 / 3.7
Max. tool speed rpm 5,000
Feedrate
Rapid feedrate (X / Y / Z) m (in)/min. 20 / 10 / 24 (787.4 / 393.7 /944.8)
Other
Floor plan (W x D x H) mm (in) 4,254 x 2,141 x 2,381 (167" x 84" x 93")
Max. machine height mm (in) 2,381 (93")
Power capacity KVA 30

* Machine specifications and design are subject to change without prior notice due to on-going innovation.
