AUTOMATION
CRG Series
Gantry Robot

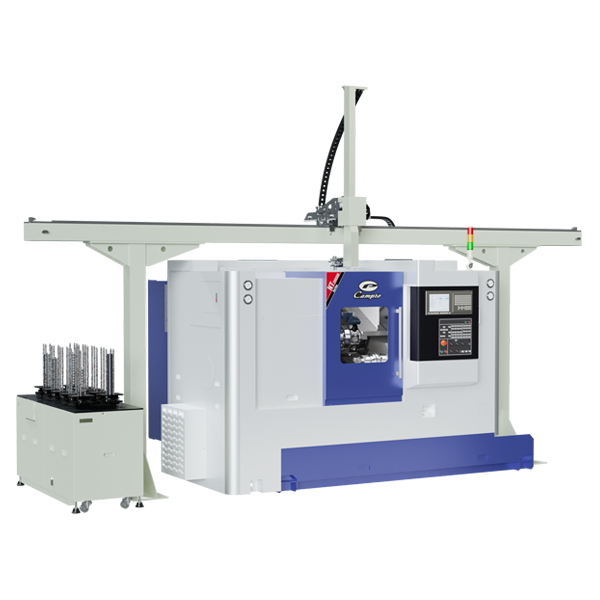

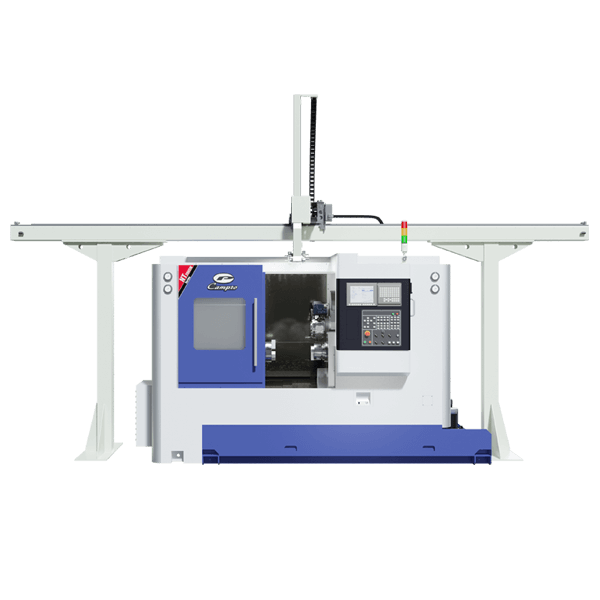

Campro has developed CRG Series Gantry robot which is designed to collaborate with Campro CNC machines, offers high flexibility and scalability. The axes move in a straight line to transport parts, the stroke lengths can be tailored optimally to the respective requirement, which means customers can determine the X, Y working stroke upon automated production lines request, such as machine size, workstation length and 1 robot 1 machine or 1 robot 2 machine cell layout. CRG Series are able to combine 3 linear motion in X, Y, Z direction and 1 rotary motion, performs precision, repeatability, and easy programming, suitable for a high efficiency shop floor demands.
Machine Specification
| Item | Unit | CRG-3000 | CRG-5000 | CRG-10000 |
|---|---|---|---|---|
| X Axis | ||||
| X-axis travel | mm | On Demand | On Demand | On Demand |
| Rapid traverse on X-axis | m/min. | 90 | 90 | 90 |
| Y Axis | ||||
| Y-axis travel | mm | On Demand | On Demand | On Demand |
| Rapid traverse on Y-axis | m/min. | 90 | 90 | 90 |
| Z Axis | ||||
| Z-axis travel | mm | On Demand | On Demand | On Demand |
| Rapid traverse on Z-axis | m/min. | 60 | 60 | 60 |
| Loading Capacity | ||||
| Max. transfer weight | kg | 3 / 6 | 5 / 10 | 10 / 20 |
